Technical data:
|
Item |
Value |
|
Color |
Black |
|
Thickness |
0.03 inch |
|
Dielectric strength |
600v/mil |
|
Tensile strength |
250psi |
|
Elongation at break |
600% |
|
Dissipation factor |
0.05 |
|
Heat exposure |
130℃ |

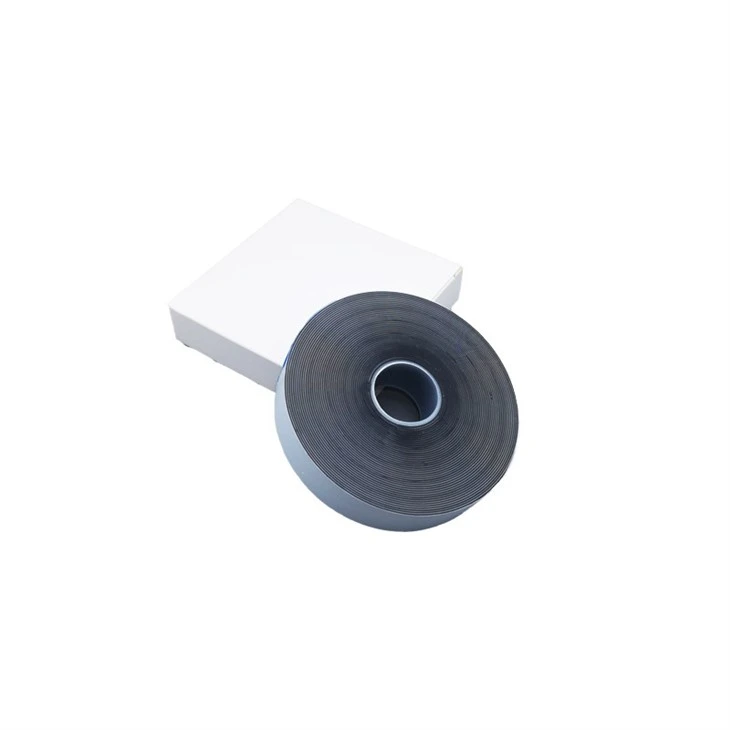

Rubber insulating tape is an amalgamating tape of 3/4 inch wide, 30 feet long per roll, UV and ozone resistant and black color. The liner between each layer easily removed from the tape.
Usage:
When using this rubber insulation tape, it must be semi overlapped and continuously wrapped. When wrapping, the tape should be stretched to make it three-quarters of the original width before stretching; At critical locations, stretch the tape all the way to the point of near fracture, without changing its physical or electrical properties; When making winding type intermediate joints with voltage levels of 35kV and below, the tape should always be significantly stretched to prevent air gaps between the tape layers.
Storage period:
This rubber insulation tape is stored at room temperature and relative humidity<75% for a storage period of 2 years from the date of production.
