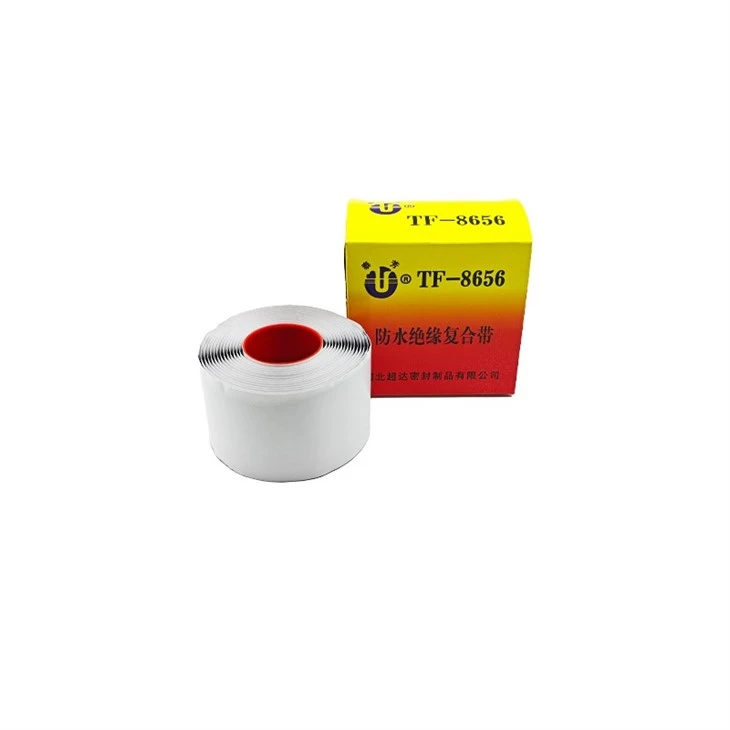

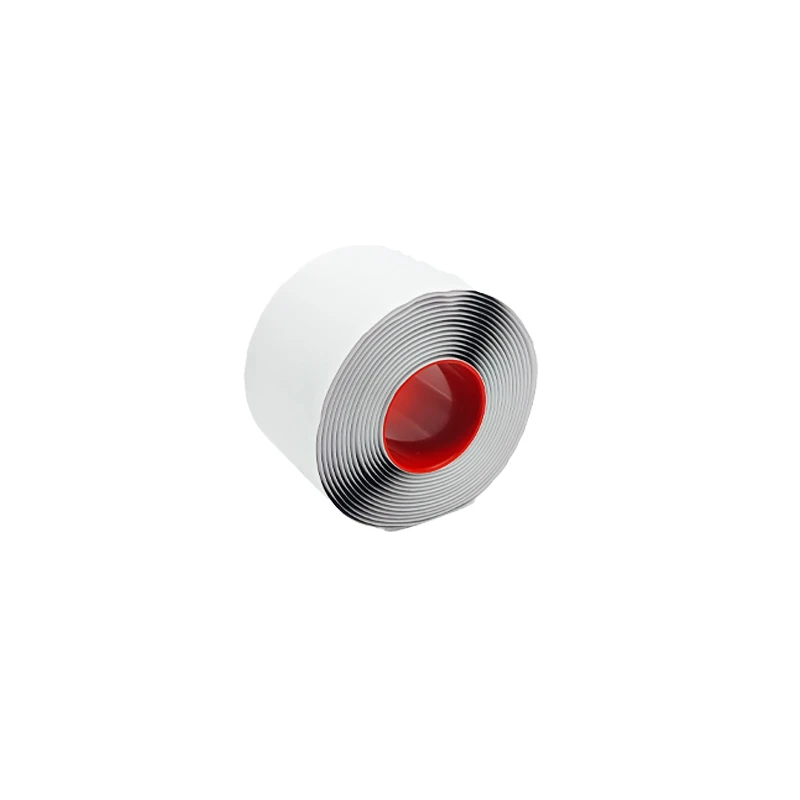

Self-bonding waterproof mastic tape is a self fusing electrical insulating and waterproof tape, insulation for motor leads rated up to 1000volts, primary electrical insulation for bus bar connections rated up to 35KV, padding for irregular shaped connections, waterproof sealing protection of overhead insulated wire joint, Moisture sealing for ground wire, cable and wire connections. It is a versatile, adaptable rubber tape used for insulating and sealing electrical components. Crafted from ethylene propylene rubber (EPR), it boasts a sturdy backing coated with a potent, thermally stable adhesive.
This tape, measuring 65 mils (1.65 mm) in thickness, enables rapid application buildup. It is meticulously engineered for the purpose of safeguarding against electrical issues and moisture infiltration. Ideal for application on copper or aluminum conductors rated at 90°C, it can handle emergency overload conditions up to 130°C.
Notably, self-bonding waterproof mastic tape showcases exceptional resilience to moisture and UV exposure, making it suitable for both indoor usage and outdoor application in various weather conditions.
Features:
1.Conformable for application over irregular surfaces
2.Compatible with solid dielectric cables and wires
3.Flexible over wide temperature range
4.Excellent weather and moisture resistance, sealing properties
5.Easy to use, no need heating and special tools
Advantages
Chaoda Self-Bonding Waterproof Mastic Tape offers an advanced sealing and insulating solution, engineered for tough environments and critical applications. Its self-bonding design allows it to fuse to itself without heat, adhesive, or tools, forming a durable and watertight barrier.
1.Self-Fusing Technology – Creates a seamless, permanent bond with no adhesive required.
2.Superior Water Resistance – Effectively seals out moisture, air, and dust.
3.Highly Conformable – Wraps easily around irregular shapes, connectors, and joints.
4.UV and Weather Resistant – Maintains integrity in sun-exposed or outdoor conditions.
5.Excellent Electrical Insulation – Suitable for low to high-voltage applications.
6.Chemical and Corrosion Resistance – Performs reliably even in industrial environments.
7.Residue-Free Removal – Leaves no sticky mess when taken off.
🛠️ Typical Applications
Chaoda's waterproof mastic tape is designed for use across multiple industries and is ideal for:
Electrical Insulation: Sealing and insulating cable joints, splices, and terminations.
Telecom & Data: Weatherproofing outdoor coaxial cable connections and antennas.
Automotive & Marine: Emergency hose repair, waterproofing connectors, corrosion prevention.
Construction & HVAC: Sealing ducts, pipes, and conduit penetrations.
Renewable Energy: Protecting and waterproofing solar and wind power connections.
General Repairs: Leak sealing, vibration damping, and protective wrap for exposed surfaces.
🧾 How to Use (Application Instructions)
Clean the Surface: Ensure the area is dry and free from oil, dirt, or loose particles.
Peel Off the Release Liner: Remove the protective film from the tape.
Stretch & Wrap: Slightly stretch the tape as you wrap it around the object, overlapping each layer by at least 50%.
Apply Pressure: Press the layers firmly to activate self-bonding.
Allow to Cure: The tape will begin to bond immediately and fully cure within hours, forming a watertight seal.
Note: No additional adhesive, heat, or tools are required. Ideal for emergency or permanent repairs.
🏭 Manufacturer Advantages – Chaoda
Chaoda is a trusted name in the tape manufacturing industry, known for delivering reliable sealing and insulating solutions to clients worldwide.
🌟 What Sets Chaoda Apart?
🧪 Custom Rubber Compounds – Developed for enhanced performance under electrical and environmental stress.
⚙️ Precision Production Equipment – Ensures uniform thickness, roll quality, and consistent fusing behavior.
📐 Tailored Specifications – Available in various sizes, thicknesses, and packaging options.
💼 OEM & Private Label Services – Support for branded distribution and bulk B2B orders.
🚀 Fast Turnaround & Logistics – Rapid delivery with scalable production capacity.
✅ Quality Compliance – Conforms to international standards for electrical insulation and environmental resistance.
Chaoda Self-Bonding Waterproof Mastic Tape is engineered for professionals who demand flexibility, durability, and waterproof performance in a single wrap. Whether you need protection in high-moisture zones or long-term insulation, this tape delivers results without compromise.
