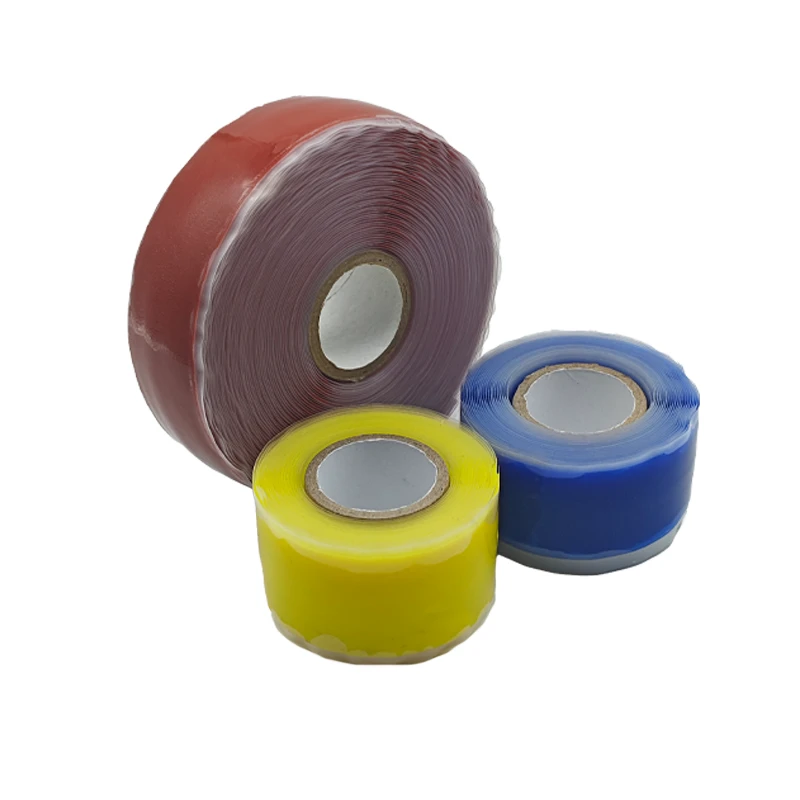

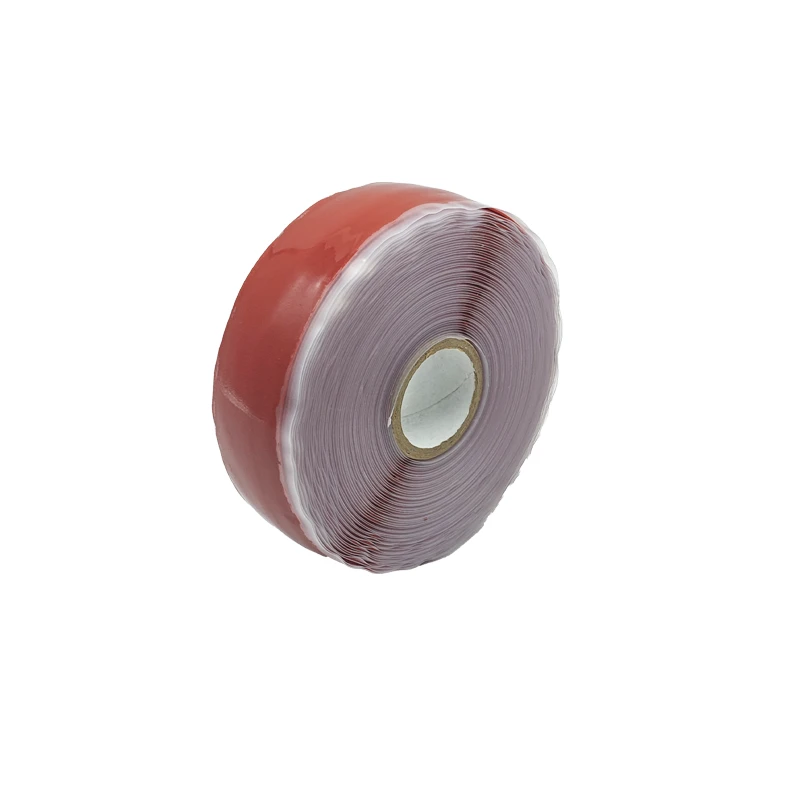

Self Bonding Rubber Tape

Features

• Excellent track resistance;
• Excellent arc resistance;
• Excellent ozone resistance;
• High dielectric strength;
• Workable in extremely low temperature;
• Waterproof.

Usage

Silicon Rubber Self- adhesive Tape, formed by the fusion of organic silicone

rubber, especially suitable for low temperature and high temperature environment, -50℃ can remain resilient, excellent surface leakage resistance marks can be used as a surface leakage mark tape, when use wrap stretch 10%- 100%,superposition of 50% winding, end to press down so as not to become wrapped up in front of the fuse.

Applications

1. The insulation for cable ends;
2. The insulation for H-type dry type transformers;
3. The insulation for vehicle motors;
4. The insulation for electric product repairing;
5. The fixation for heaters;
6. Harness wrapping: automotive, aircraft, protective;
7. Emergency radiator hose repairs; emergency insulating & barrier tape;
8. Military applications.

Easy to use

(1) The winding layer has an insulating effect, reducing labor and cost;

(2) It has vibration damping, heat insulation, mechanical shock resistance and corona resistance performance;

(3) Moisture, oxidation, and ozone resistant to ensure continuous high insulation values;

(4) All adhesive tapes are protected by a special isolation lining, which can be removed and directly wrapped when used.

Excellent insulation performance

(1) Volume resistivity: 10¹³ Ω·cm/min;

(2) Withstand voltage of 25KV/mm;

(3) Even if entangled around sharp and complex shapes, the sealing is still good, the sealing and waterproofing are excellent, and the protection maintain uniformity and smoothness, even in high humidity environments can maintain high insulation resistance;

(4) Inherent flame retardants do not have conductivity when the combustion material forms ash;

(5) For occasions that require complete flame retardant, flame retardant products are also available.
